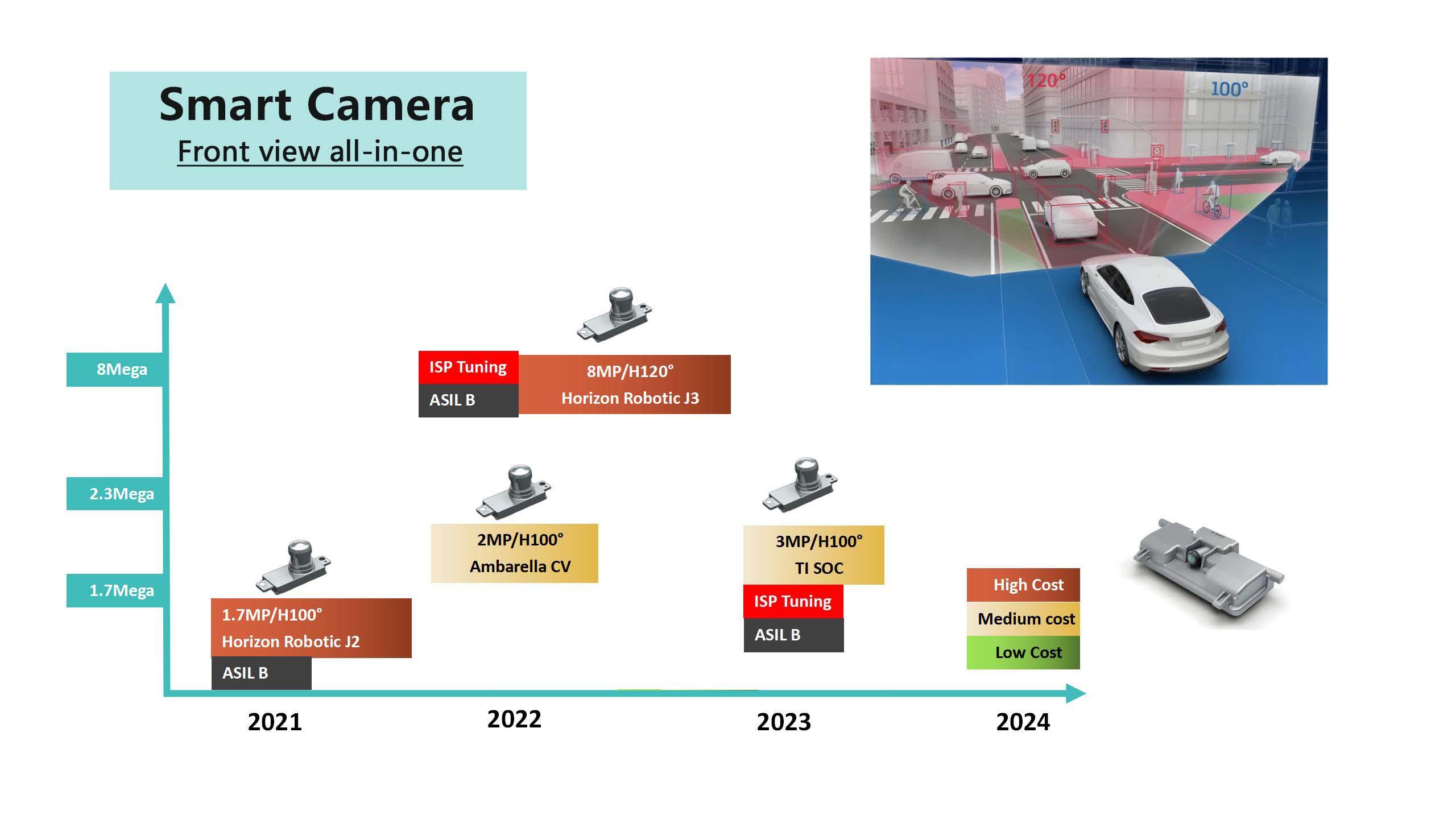

Front view all-in-one Smart Camera

Electronic exterior rearview mirror, also known as Camera Monitor System, abbreviated as CMS. By utilizing electronic exterior rearview mirrors (CMS), it helps to reduce vehicle air resistance, reduce blind spots, and improve the vehicle's field of view performance in harsh environments. At the same time, the camera that replaces the rearview mirror can also integrate ADAS and intelligent networking related functions, allowing real-time display of visual information on the car's display.

  8MP OX08B40 Front View Camera      Overview SG8S-OX08BC-G2A-H30YA camera module is equipped with OmniVsion CMOS image sensor OX08B40 and Maxim GMSL2. It has an automotive-grade sensor , which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.      Features  1. Output format: RAW format 2. IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS      Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  2MP OX03C10 Side & Rear View Camera      Overview SG8-OX03CC-G2F-H60MA camera module is equipped with OmniVsion CMOS image sensor OX03C10 and Maxim GMSL2 serializer (MAX96717F) . It has anautomotive-grade sensor , which comes with an IP67-rated enclosure is supplied with an M12/M16/AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Kit Name Adaptation Developer kit Maximum number of cameras connected Picture SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit     ARM platform/computer/industrial computer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 SG8A-ORIN-GMSL2‍ Adapter board NVIDIA Jetson AGX Orin/AGX Xavier Developer kit 8 NVIDIA GMSL2 Developer kit NVIDIA Drive AGX Orin Developer kit 12 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: RAW format 2. IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  3MP ISX031 Surround View Camera      Overview SG3S-ISX031C-GMSL2F-Hxxx camera module is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board  NVIDIA Jetson AGX Orin/AGX Xavier Developer kit   8 SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit     ARM platform/computer/industrial computer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  3MP ISX031 Surround View Camera      Overview SG3S-ISX031C-GMSL2F-Hxxx camera module is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board  NVIDIA Jetson AGX Orin/AGX Xavier Developer kit   8 SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit     ARM platform/computer/industrial computer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

The camera module is a depth camera based on active stereoscopic structured light for 3D imaging. It consists of 2 IR image sensors, 1 RGB image sensor, 1 infrared speckle projector, and 1 IMU. It is suitable for applications such as obstacle avoidance, navigation for robots/AGVs/AMRs/drones.

Mature autonomous driving HIL Video Injection Reinjection Solution   [CyberCobra] GMSL Video Injection Card（Hereinafter referred to as video injection card）is an high-speed image product based on FPGA.The video injection card adopts PCIe Gen3 technology, which can realize 8-channel video/image injection, and adopts high-precision multi-channel time synchronization technology to ensure that multi-channel data can be synchronized output, and the product is widely used in the hardware-in-the-loop HIL simulation system, digital acquisition and reinjection system, and video playback system and other scenarios.     Adopting PCIe Gen3 technology  Implement 8-channel video/image injection,High precision multi-channel time synchronization After collecting data was collected by autonomous vehicles, algorithm validation and optimization are required, which requires a data injection system to achieve. The autonomous driving IPC will transmit the collected video data of the hard disks to video injection card through the PCIe interface. The video injection card will synchronously output 8 channels of video based on the timestamp, simulate the camera time sequence, and transmit it to the domain control through the GMSL interface.Video injection card support gPTP/PTP synchronization, achieving time synchronization through switches, IPC and ACU, ensuring that all devices in the system are on the same timeline.     [CyberCobra] GMSL Video Injection Card  Independently developed and deeply adapted high-speed image products Typical applications▼ Domain controlled image reinjection and simulation testing platform Independently developed and deeply adapted high-speed image products     ◎ Support user to inject the video data ◎ Support for user injection of video datarendered by GPU graphics card emulation ◎ Support for external trigger signals to control the simultaneous output of all channels ◎ Support synchronized output according to timestamp ◎ Support gPTP/PTP synchronous   Features and Advantages ▼ ◉  PCle sustainable bandwidth up to 4800 MB/s  ◉  Output video format support YUV422,RAW10/12/14 ◉  Zynq™ UltraScale+™ ZU7EV MPSoC ◉  Support Simulate I2C messages between ECU and camera ◉  Real-time processing of large amounts of data independent from other hardware requirements ◉  Support ECU external trigger signal control for simultaneous output of all channels  ◉  High-performance DMA engine for data transfers from host ◉  Support Timestamp-based playback of RAW video data ◉  Serializer support MAX9295A,MAX96717F,MAX96717… ◉  Synchronization of multiple base boards ◉  Deserializer support MAX9296A,MAX96712,MAX96716,MAX96718…  ◉  Output video resolution supports up to 8 channels 3840 × 2160@30fps ◉  Synchronization of multiple base boards ◉  Linux and Windows supported

  2MP OX03C10 Side & Rear View Camera      Overview SG8-OX03CC-G2F-H60MA camera module is equipped with OmniVsion CMOS image sensor OX03C10 and Maxim GMSL2 serializer (MAX96717F) . It has anautomotive-grade sensor , which comes with an IP67-rated enclosure is supplied with an M12/M16/AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Kit Name Adaptation Developer kit Maximum number of cameras connected Picture SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit     ARM platform/computer/industrial computer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 SG8A-ORIN-GMSL2‍ Adapter board NVIDIA Jetson AGX Orin/AGX Xavier Developer kit 8 NVIDIA GMSL2 Developer kit NVIDIA Drive AGX Orin Developer kit 12 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: RAW format 2. IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots
