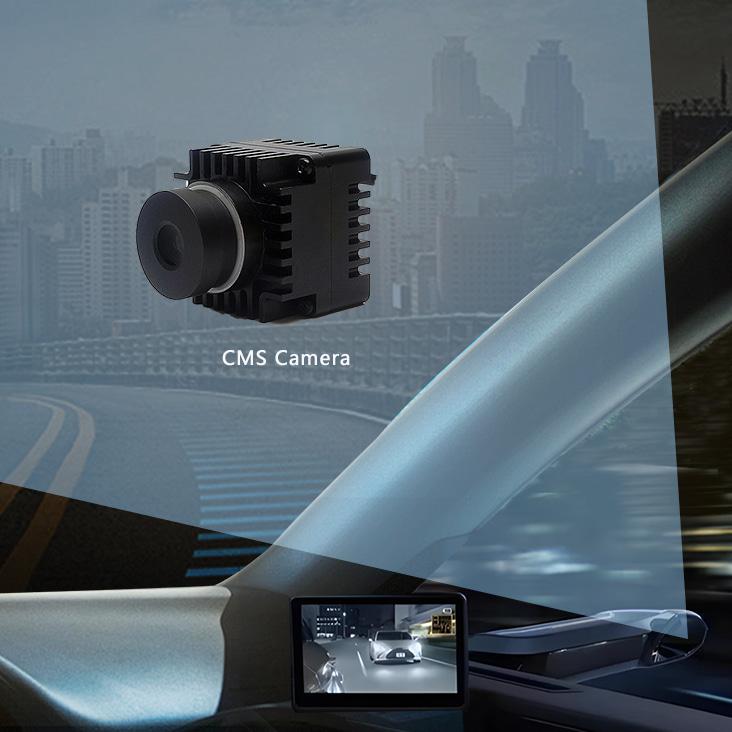

CMS Camera

  8MP OX08B40 Front View Camera      Overview SG8S-OX08BC-G2A-H30YA camera module is equipped with OmniVsion CMOS image sensor OX08B40 and Maxim GMSL2. It has an automotive-grade sensor , which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.      Features  1. Output format: RAW format 2. IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS      Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  2MP OX03C10 Side & Rear View Camera      Overview SG8-OX03CC-G2F-H60MA camera module is equipped with OmniVsion CMOS image sensor OX03C10 and Maxim GMSL2 serializer (MAX96717F) . It has anautomotive-grade sensor , which comes with an IP67-rated enclosure is supplied with an M12/M16/AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Kit Name Adaptation Developer kit Maximum number of cameras connected Picture SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit     ARM platform/computer/industrial computer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 SG8A-ORIN-GMSL2‍ Adapter board NVIDIA Jetson AGX Orin/AGX Xavier Developer kit 8 NVIDIA GMSL2 Developer kit NVIDIA Drive AGX Orin Developer kit 12 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: RAW format 2. IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  3MP ISX031 Surround View Camera      Overview SG3S-ISX031C-GMSL2F-Hxxx camera module is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board  NVIDIA Jetson AGX Orin/AGX Xavier Developer kit   8 SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit     ARM platform/computer/industrial computer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

ADAS (Advanced Driver Assistance System), also known as Autonomous Driving Assistance System. As an important carrier of intelligent driving, the popularization of ADAS is a prerequisite for achieving autonomous driving in the future. Currently, ADAS is in a high-speed development period of L2 level.The camera is the core sensor of the ADAS perception layer, and perception type ADAS cameras are used for active safety and need to accurately capture images. SENSING front view all-in-one smart camera module is independently developed and designed by SENSING. It adopts high dynamic vehicle image sensors and has high reliability performance, which can provide high-quality images for visual applications of advanced autonomous driving assistance systems. The camera module has wide applicability and can adapt to different SOC platforms.

SerDes Camera to USB Converter Applicable to the following requirements   When you need to build an autonomous driving, machine and equipment, you can use the  SerDes camera to USB converter to achieve the required camera access function, and use high-quality camera to obtain images with high dynamic, low illumination and high sensitivity.   Features  1. Uncompressed video acquisition 2. R/W camera register through I2C 3. Multi−Camera Synchronization Support 4. Update camera firmware for Sony, Onsemi, OV Application ● Autonomous Driving&machine ● Video Capture  ● Laboratory ● USB camera

          Event Based Camera   Speed, performance, efficiency and safety bring new heights to autonomous machine, automation and high-speed sports    SONY IMX646 EVS image sensor is adopted, based on PROPHESEE METALVISION technology   High frame rate and Up to 120dB HDR   High speed and high time resolution. Now there is no frame rate concept. It makes full use of events different from frames to reveal the invisible things hidden in the super fast and transient dynamic scene.   Product Model SE1-S4-USB-HxxxC C Mount Lens SE1-S4-USB-HxxxM M12 Mount Lens Back View       SE1-S4-USB EVS camera has two types of lenses, M12 and CS mount Lens, which can be selected by customers according to different application Its appearance size is 35x35x35mm, and it weighs 80g. The body is compact and convenient, and it is easier to install.         Advantage Speed 800us latency at 1k lux Achieve high-speed and high-temporal resolution. HDR 120dB Dynamic Range Achieve high robustness even in extreme lighting conditions. With Metavision sensors you can now perfectly see details from pitch dark to blinding brightness in one same scene, at any speed. LOW LIGHT 0.1 Lux Low-Light Cutoff Sometimes the darkest areas hold the clearest insights. Metavision enables you to see events where light almost does not exist, down to 0.1lux.   USB3.0 USB3.0 output provides a fast and convenient interface, which can be connected to most systems for customers to use. At the same time, power is supplied through USB3.0, and drive free external power is supplied separately Different interface of Lens M12/C mount Lens M12 and C-Mount lenses are available for  different scenes. Compatible with the MetaVision It is compatible with the PROPHESEE MetaVision sdk of prophase. You can directly connect to the metavision software and call the metavision sdk function.     Specification For more details, please click to send us email

Mature and fast multi-sensor solutions for autonomous machine prototype   Based on various IPC, insert CoaxCapture GMSL Capture cards. The cards are connected to the camera of the whole vehicle. Each card can reach up to 8*8MP at most. At the same time, it can be connected to GPS or PTP for time service. The data with time stamp can be transmitted to the industrial personal computer GPU for processing with low delay and lossless through the PCIe Gen3 interface.      Low latency, multi-sensor synchronization accuracy<1ms, camera data can be reused for acquisition and perception    Millisecond precision latecy, provides exposure data and enables precise sensor fusion. The innovative camera data BYPASS technology enables camera reuse, enabling the two systems of perception algorithm and acquisition to work simultaneously, recording all data of driving for playback.   CoaxCapture II GMSL Capture Card CoaxCapture GMSL Video Capture Card CCG3-8H, it is a high- speed image product based on FPGA. The card can connect GMSL/GMSL2 cameras, and has the advantages of high framerate, high speed, low latency, etc. It is widely used in autonomous machine, autonomous vehicle, data capture and other scenes.   ◎ 4 GMSL cameras input, support up to 8 Mega Pixels@ 30 fps; ◎ PCI-e 3.0 *8lane; ◎ Support external trigger synchronization; ◎ Support GPS Timing synchronization; ◎ Support network PTP timing synchronization;     Application 1▼ Perception hardware solution of Autonomous  Provide Camera+CoaxCapture Capture Card+IPC+Coaxial cable       Application 2▼ Vehicle data acquisition - Perception Provide Camera+CoaxCapture Capture Card+Bypass+IPC+Coaxial cable It can also be connected to the original camera, supporting RAW and YUV data of camera     Our Advantage▼   4CH Up to 4 channels  8MP@30fps 3.0 PCI-e Gen3.0  Up to 4800 MB/s continuous  bandwidth <1ms Support GPS synchronization,  PTP time synchronization, accuracy <1ms, and direct time stamp  function inside the board N+ Adapt to mainstream IPC brands Rapid technical support Support other brand camera access

  2MP IMX662 MIPI CSI-2 Camera Overview  SG2-IMX662C-MIPI-Hxxx camera module is equipped with SONY CMOS image（IMX662）,is supplied with an M12 lens that is focused and glued in our factory，can be adapted to diference SOC platforms. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Development/Capture Kits Name Adaptation Developer kit Maximum number of cameras connected Picture NVIDIA MIPI CSI-2‍ Camera Developer Kit NVIDIA Jetson Orin Nano/Orin NX Developer Kit  2 If you need relevant development support, please contact Sales@sensing-world.com   Features  1. Output format: Uncompressed RAW format 2. Industrial high performance 3. Support different focal length lens 4. Support external triggering 5. Multi−Camera synchronization Application 1. Machine-vision 2. Intelligent transportation 3. Aeronautics and Astronautics 4. Industrial inspection
