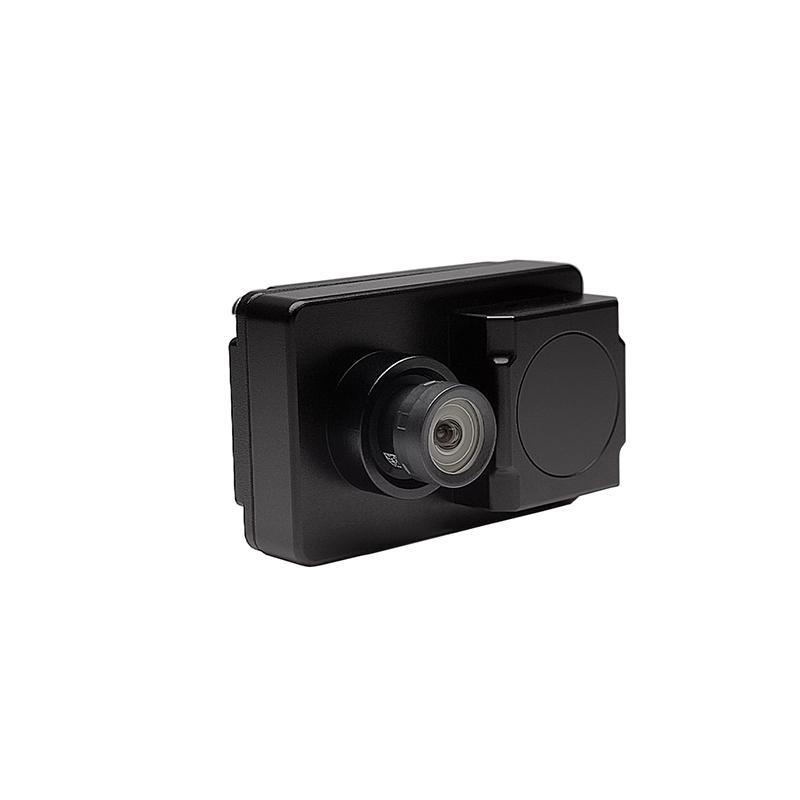

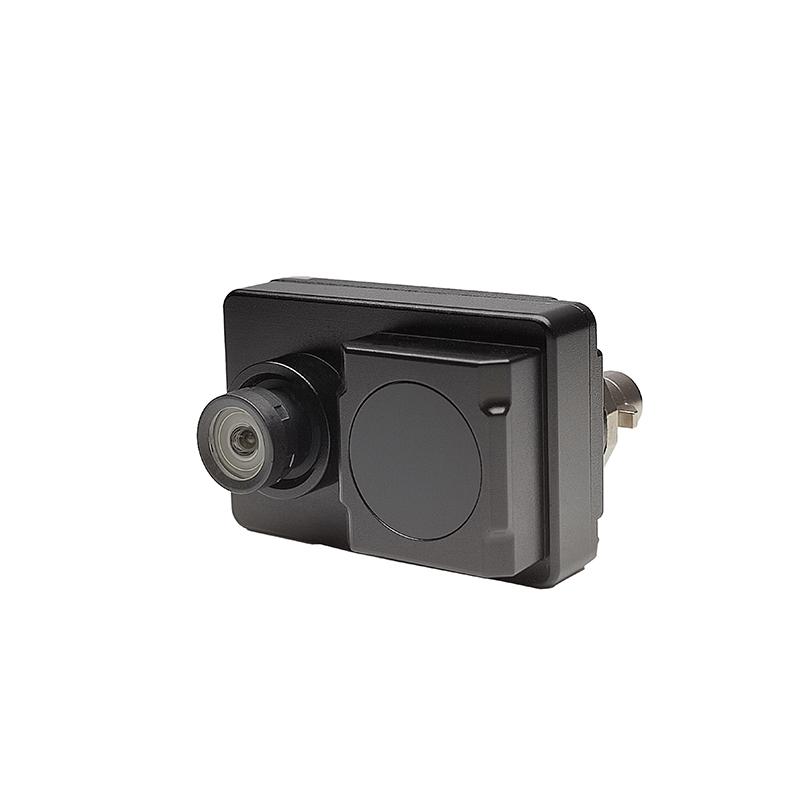

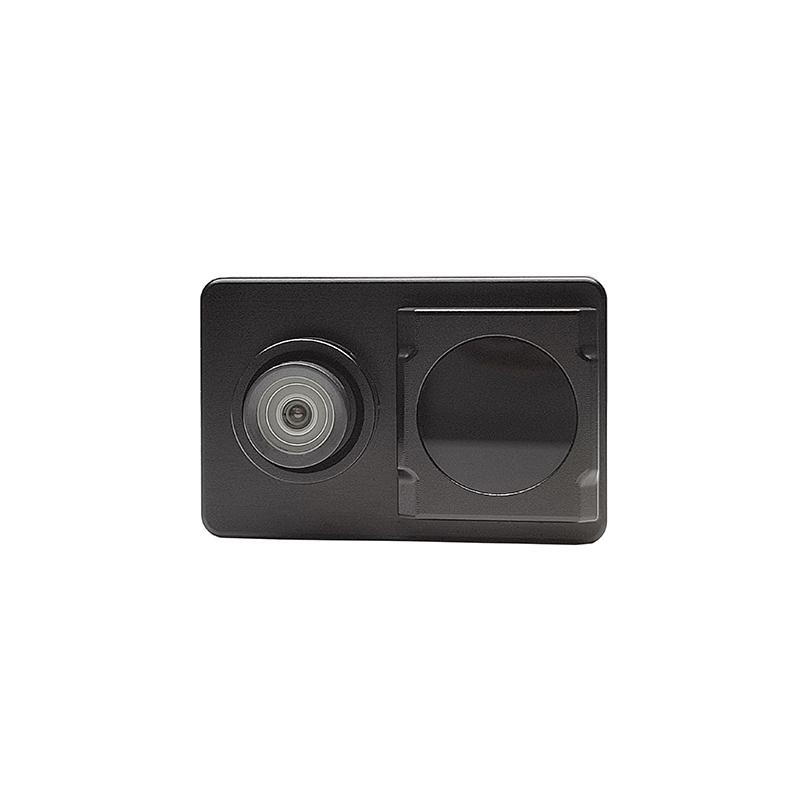

5MP RGBIR OMS Camera

The camera is equipped with OmniVision CMOS image sensor OV02311 and Maxim GMSL serializer MAX96717F. lt has an automo.tive-grade sensor with a well-tuned lmage Signal Processor (lSP) thatproduces exceptional image quality, lt is also equipped with an infra.red automotive grade lens that supports 940nm infrared light recogni-tion.

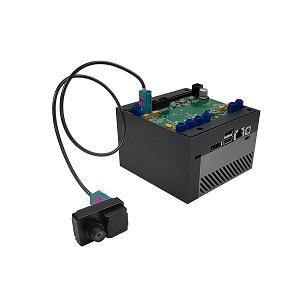

  Jetson Orin Nano Super 4CH GMSL2 camera adapter board Overview  The SG4A-NONX-G2Y-A1 adapter board, whose MIPI interface is designedaccording to the standard NVDIA standard 22Pin interface (see the CN8 pindefinition on page 9), can be compatible with official and customer designdevelopment boards.  The design has 4 coaxial FAKRA interfaces for up to 4 cameras, supportingdifferent types of GMSL cameras. The adapter board can adapt to work in differentfrequencies, that is, it is compatible with GMSL1 and GMSL2 protocol interfacesthrough software configuration.  The Power supply of GMSL camera is provided byPoC (Power over Coax), so all data, control signals and power are sent through a 50ohm coaxial cable. This makes the camera's cable wiring flexible and easy to install inautomotive applications.     Adapter plate function Compatible with different versions of the NVIDIA JetPack SDK Jetpack5.0.1, L4T r34.1.1 and later versions Supports up to 4 GMSL cameras SG4A-NONX-G2Y-A1 Built-in ADI（MAXIM）MAX96712, supports up to 4 GMSLcameras Support synchronous trigger Supports external access trigger signals to achieve camera synchronization The maximum transmission distance of the camera is 15 meters By using the GMSL protocol for cameras, you can support stable and reliable transmission of cameras over long distances, with a maximum distance support of 15 metres. Instructions for using the adapter plate For more details, please refer to the product specifications or contact sales personnel at email Sales@sensing-world.com

Mature and fast multi-sensor solutions for autonomous machine prototype   Based on various IPC, insert CoaxCapture GMSL Capture cards. The cards are connected to the camera of the whole vehicle. Each card can reach up to 8*8MP at most. At the same time, it can be connected to GPS or PTP for time service. The data with time stamp can be transmitted to the industrial personal computer GPU for processing with low delay and lossless through the PCIe Gen3 interface.      Low latency, multi-sensor synchronization accuracy<1ms, camera data can be reused for acquisition and perception    Millisecond precision latecy, provides exposure data and enables precise sensor fusion. The innovative camera data BYPASS technology enables camera reuse, enabling the two systems of perception algorithm and acquisition to work simultaneously, recording all data of driving for playback.   CoaxCapture II GMSL Capture Card CoaxCapture GMSL Video Capture Card CCG3-8H, it is a high- speed image product based on FPGA. The card can connect GMSL/GMSL2 cameras, and has the advantages of high framerate, high speed, low latency, etc. It is widely used in autonomous machine, autonomous vehicle, data capture and other scenes.   ◎ 8 GMSL cameras input, support up to 8 Mega Pixels@ 30 fps; ◎ PCI-e Gen3*8lane; ◎ Support external trigger synchronization; ◎ Support GPS Timing synchronization; ◎ Support network PTP timing synchronization;     Application 1▼ Perception hardware solution of Autonomous  Provide Camera+CoaxCapture Capture Card+IPC+Coaxial cable       Application 2▼ Vehicle data acquisition - Perception Provide Camera+CoaxCapture Capture Card+Bypass+IPC+Coaxial cable It can also be connected to the original camera, supporting RAW and YUV data of camera     Our Advantage▼   8CH Up to 8 channels  8MP@30fps 3.0 PCI-e Gen3.0  Up to 4800 MB/s continuous  bandwidth <1ms Support GPS synchronization,  PTP time synchronization, accuracy <1ms, and direct time stamp  function inside the board N+ Adapt to mainstream IPC brands Rapid technical support Support other brand camera access

  1.3MP OX01F10 with ISP  FPDLinkIII Camera      Overview SG1-OX01F10C-FPDLink-Hxxx camera module is equipped with OmniVision CMOS image sensor OX01F10 and TI FPDLink III. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure   is supplied with an M12 lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Image Solution Adaptation Developer kit /output interface Maximum number ofcameras connected Picture ‍SG2A-ORIN-FPDLink‍ Adapter plate NVIDIA Jetson AGX Orin/AGX Xavier Developer kit 8 SGDA-01413‍ Adapter board Texas Intrusments FPDLink III   Developer Kit 4 SerDes Camera to USB Converter SG8-U30-‍FPDLink NVIDIA Jetson Orin Nano/NX Developer Kit   ARM platform/computer/industrial computer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: Uncompressed YUV422 format 2. Calibrate camera internal parameters 3. S-mount IP67 compliant lens focused and glued at our factory 4. Multi−Camera synchronization Support 5. Support different focal length lens 6. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  20MP IMX283 MIPI CSI-2 Camera Overview  SG20-IMX283C-MIPI-Hxxx camera module is equipped with SONY CMOS image sensor IMX283，20 million high-resolution image output, excellent performance in UAV high-altitude shooting, ground remote monitoring and close-range industrial detection , can be adapted to different SOC platforms. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Development/Capture Kits Name Adaptation Developer kit NVIDIA MIPI CSI-2‍ Camera Developer Kit NVIDIA Jetson Orin Nano/Orin NX Developer Kit If you need relevant development support, please contact Sales@sensing-world.com   Features  1. Raw output 2. Support binning mode  3. High sensitivity, low dark current 4. Excellent anti-blooming performance 5. Support Global Shutter exposure mode 6. Support different focal length lens Application 1. Machine-vision 2. Intelligent transportation 3. Aeronautics and Astronautics 4. Industrial inspection

  3MP OX03J10 with ISP GMSL2 Camera Overview  SG3S-OX03JC-G2F-Hxxx camera module is equipped with OMNIVISION OX03J10 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an M12 lens that is focused and glued in our factory. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Development/Capture Kits Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board  NVIDIA Jetson AGX Orin/AGX Xavier Developer kit   8 SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit ARM platform/computer/industrial computer/USB3.0 interface 1   CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com   Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. External trigger support 4. Multi−Camera synchronization Support 5. Support different focal length lens 6. FCC , CE and RoHS Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  GMSL Repeater   GMSL2 Repeater can realize one GMSL2 input and one GMSL2 output，so as to extend the transmission distance.   Diagram▼ We can provide Camera+Coaxial cable   Specification▼ For more details, please click to send us email

  2.6MP AR0233 with ISP GMSL2 Camera      Overview SG2-AR0233C-5200-G2A-Hxxx camera module is equipped with ONSEMI CMOS image sensor AR0233 and Maxim GMSL2. It has an automotive grade sensor with a welltuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an M12 lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number ofcameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board NVIDIA Jetson AGX Orin/AGX Xavier Developer kit 8 SerDes Camera to USB ConverterSG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NXDeveloper KitARM platform/computer/industrialcomputer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots
