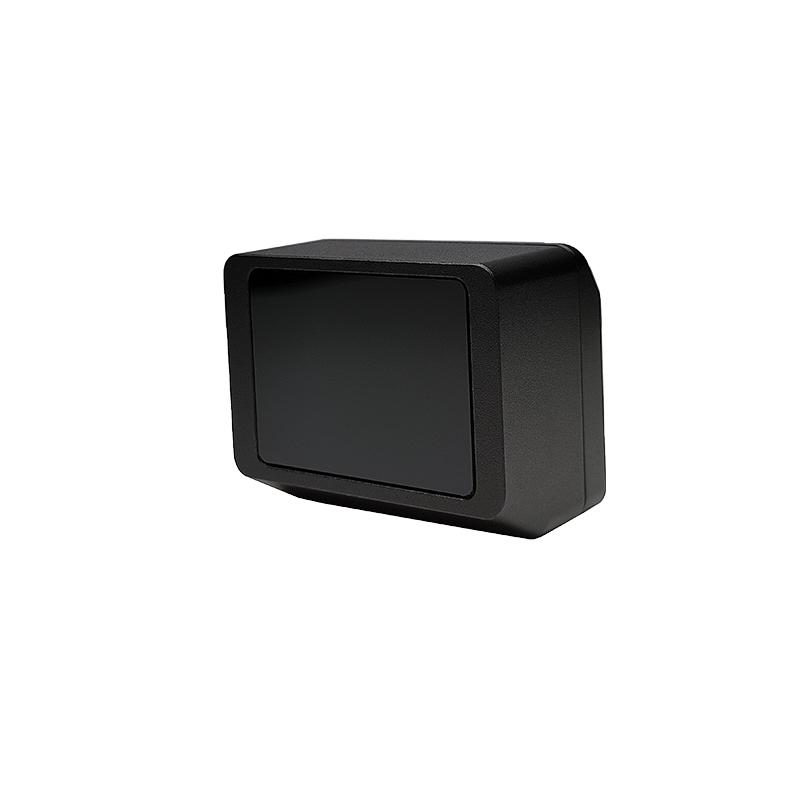

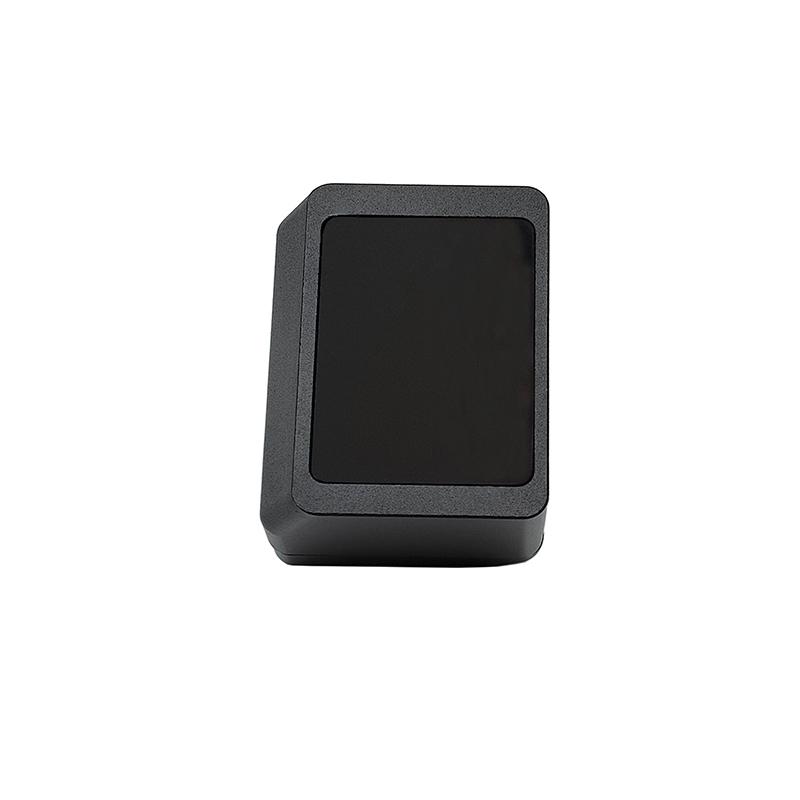

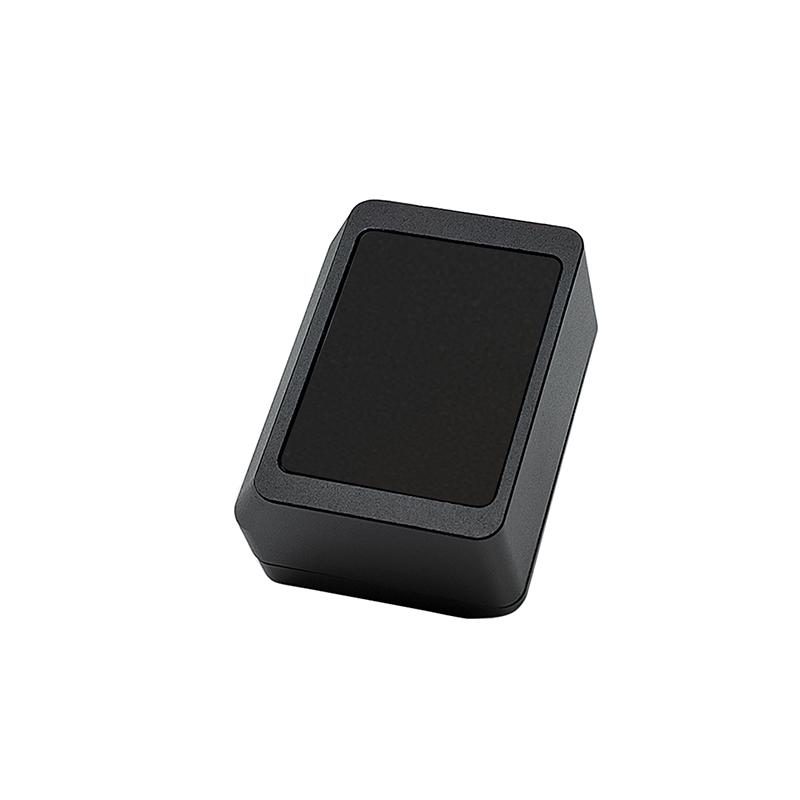

2MP DMS Camera

The camera is equipped with OmniVision CMOS image sensor OX05B1S and Maxim GMSL serializer MAX9295A. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, It is also equipped with an M12 automotive grade lens that supports visible light and 940nm infrared light recognition.

  6CH GMSL2 Camera Developer Kit for NVIDIA Jetson Orin Nano/NX Overview  SG6C-ORNX-G2-F is a computing platform carrier board designed for NVIDIA Jetson Xavier/Orin NX series modules, and is also compatible with TX2-NX and Nano SOM core modules. PCIe expandable 4G, M.2 Key-Baccess to 5G modules, 2-way CAN bus, 2-way USB3.0 compatible with 2.0, etc. With long MTBF stable operation capability, it is widely used in low-speed automatic driving controller,logistics, security, transportation and other industries, and the end product form is rich for application in robots, drones, unmanned delivery vehicles, unmanned ships, intelligent law enforcement equipment, etc. Adapter plate function Support for NVIDIA Jetson AGX Orin/Xavier Development Kit Support for NVIDIA Jetson Xavier/Orin NX (compatible with TX2-NX/Nano) Supports M.2 KEY M 2280 (PCIex4 NVMe SSD or Compute Stick) Supports 6 GMSL cameras (GMSL1 and GMSL2 compatible) Supports M.2 KeyB extension interface for access to 5G modules Supports mini-PCIe expansion interface for access to 4G modules Supports dual Gigabit RJ45 network interfaces Dual-band WIFI support and optional GPS support Supports a wide range of interfaces (e.g. USB/Serial/CAN/GPIO, etc.) Compatible with installation of different versions of NVIDIA JetPack SDK Carrier board operating instructions Instructions for using the adapter plate The SG6C-ORNX-G2-F carrier board is used with NVIDIA Jetson Xavier/Orin NX and other core boards. The driver package is developed on a specific Jetson Linux version and you need to make sure the Jetson Linux version matches before installing the driver. If it does not match,you need to re-flash the system, otherwise the system will not boot after installing the driver. NVIDIA Jetson Xavier/Orin NX supports two types of flushing methods, using SDK Manager and via the Flash.sh script. Preparation required SG6C-ORNX-G2-F carrier board with NVIDIA Jetson Xavier/Orin NX module and SSD Computer with Ubuntu 18.04/20.04 USB TYPE-C data cable 1pc

The camera is equipped with OmniVision CMOS image sensor OX05B1S and Maxim GMSL serializer MAX9295A. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, It is also equipped with an M12 automotive grade lens that supports visible light and 940nm infrared light recognition.

  8MP AR0820 with ISP GMSL3 Camera Overview  SG8S-AR0820C-5300-G3A-Hxxx camera module is equipped with ONSEMI Semiconductor CMOS image sensor AR0820 and Maxim GMSL3. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Development/Capture Kits Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG2A-G3-M4L-F‍ Adapter board NVIDIA Jetson Orin Nano Developer Kit   2 If you need relevant development support, please contact Sales@sensing-world.com   Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

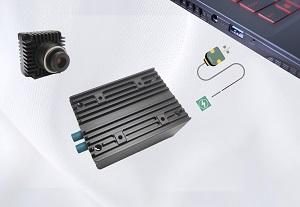

SerDes Camera to USB Converter Applicable to the following requirements   When you need to build an autonomous driving, machine and equipment, you can use the  SerDes camera to USB converter to achieve the required camera access function, and use high-quality camera to obtain images with high dynamic, low illumination and high sensitivity.   Features  1. Uncompressed video acquisition 2. R/W camera register through I2C 3. Multi−Camera Synchronization Support 4. Update camera firmware for Sony, Onsemi, OV Application ● Autonomous Driving&machine ● Video Capture  ● Laboratory ● USB camera

  3MP OX03J10 with ISP GMSL2 Camera Overview  SG3S-OX03JC-G2F-Hxxx camera module is equipped with OMNIVISION OX03J10 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an M12 lens that is focused and glued in our factory. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Development/Capture Kits Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board  NVIDIA Jetson AGX Orin/AGX Xavier Developer kit   8 SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit ARM platform/computer/industrial computer/USB3.0 interface 1   CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com   Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. External trigger support 4. Multi−Camera synchronization Support 5. Support different focal length lens 6. FCC , CE and RoHS Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  8MP IMX728 GMSL3 Camera Overview  SG8-IMX728C-G3A-Hxxx camera module is equipped with SONY CMOS image sensor IMX728 and Maxim GMSL3（Max96793）. It has an automotive-grade sensor without ISP, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Development/Capture Kits Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG2A-G3-M4L-F‍ Adapter board NVIDIA Jetson Orin Nano Developer Kit   2 If you need relevant development support, please contact Sales@sensing-world.com   Features  1. Output format: RAW data format 2. S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  8.3MP OX08D10 GMSL2 Camera Overview  SG8-OX08DC-G2A-Hxxx camera module is equipped with OMNIVSION CMOS image sensor OX08D10 and Maxim GMSL2(MAX9295A).It has an automotive-grade sensor , which comes with an IP67-rated enclosure – is supplied with AA lens that is focused and glued in our factory. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Features  1. Output format: Uncompressed RAW format 2. AA/S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. External trigger support Application 1. Automotive  2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots
